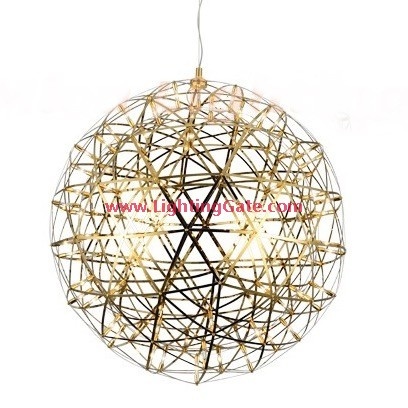

Moooi Raimond Suspension Light
Collection
￥429起 ￥55000.00
DIA
  • Products Details
  • Parameter

year of design

2007
Stainless Steel 304 (indoor use, not resistant to marine conditions ) and PMMA

The intricate spheres of Raimond transport the electrical current. The LED terminals then join these paths to create an atmospheric ambiance. The transparant lenses are specially detailed to spread warm white light in every direction.

Please refer to the manual and safety instructions for more information on installation

Stainless steel

amount of LED`s
R43: 92, power consumption 16W
R61: 162, power consumption 30W
R89: 252, power consumption 50W
ZAFU: 162, power consumption 30W
R127: 492, power consumption 46W
R163: 812, power consumption 70W
R199: 1212, power consumption 100W

Voltage on lamp sphere < 5V DC

colour temperature (degrees Kelvin, K)
2700K (warm white, comparable to incandescent)

colour rendering index
CRI_Ra 71, colour rendering group 2

luminous flux (Lumen, lm)
R43: 329lm (≈ 40W incandescent)
R61: 644lm (≈ 60W incandescent)
R89: 790lm (≈ 75W incandescent)
ZAFU: 510lm (≈ 40-60W incandescent)
R127: 1684lm
R163: 2779lm
R199: 4148lm

ELUMDAT files are available at the Moooi website inside the product download section.


Dimmable, refer to dimmer list below for compatible dimmers
Input voltage of 220-230V ~50Hz AC
Cable length 4M (transparent) can be shortened down to 30cm.

Non dimmable (UN version) suitable for input voltages of 110V - 240V also available.

Stainless steel canopy with included power supply

Dimmers below (make & type) have proven to show a fluent dimming behaviour with CE version:

GIRA 226200 (replaces 030600) R,L
JUNG 244HEX20-500  R,L
INSTA 51180   R,L
PEHA 435 HAN   R,L
Cooper control iLight system source controllers: SCI0410, SCI0805, SCI1210, SCI1220
Lutron LQSA-4A-D & QSNE-4A-D

IMPORTANT! The use of a non-recommended dimmer can lead to unexpected dimming behavior and even non-repairable damage of the fixture and/or driver.

Dimmable, refer to dimmer list below for compatible dimmers
Suitable for input voltage of 110V - 127V.
Cable length 4M | 13.1ft (transparant) can be shortened down to 30cm | 11.8".

For the US and Canadian market only.

White steel canopy with included power supply

recommended dimmers
Dimmers below (make & type) have proven to show a fluent dimming behaviour with cULus version:
Lutron CT-603PGH-WH
Lutron DIVA DV-603PG
Lutron DV-600P
Lutron CTCL-153 PD
Lutron LQSA-4A-D & QSNE-4A-D

IMPORTANT! The use of a non-recommended dimmer can lead to unexpected dimming behavior and even non-repairable damage of the fixture and/or driver.

Input voltage of 110- 240V ~50Hz/ 60Hz AC
voltage on lamp sphere < 5V DC

Cable length 10M | 32,8ft (transparent) can be shortened down to +/- 0,8M | 2.6ft. Please refer to line drawings below for exact cable lengths.

ELUMDAT files are available at the Moooi website inside the product download section.

There are two dimmable versions available. One is remote controlled, the other is 1-10v suitable.

Power supply included in driverbox. No canopy included, for more information on installation refer to the manual.

Stainless Steel 304 (indoor use, not resistant to marine conditions)

Stainless steel gets the "stainless" portion of its name from its chromium oxide coating that resists staining, pitting and rusting. But although it holds up better than other metals, stainless steel is not impervious to rust. Time and certain environmental conditions like salt air will slowly erode stainless steel's protective coating. When the chloride in the aerosolized salt in salt air lands on the surface of the stainless steel, it breaks down the chromium oxide.


Stainless Steel 304 (indoor use, not resistant to marine conditions)

Stainless steel gets the "stainless" portion of its name from its chromium oxide coating that resists staining, pitting and rusting. But although it holds up better than other metals, stainless steel is not impervious to rust. Time and certain environmental conditions like salt air will slowly erode stainless steel's protective coating. When the chloride in the aerosolized salt in salt air lands on the surface of the stainless steel, it breaks down the chromium oxide.
